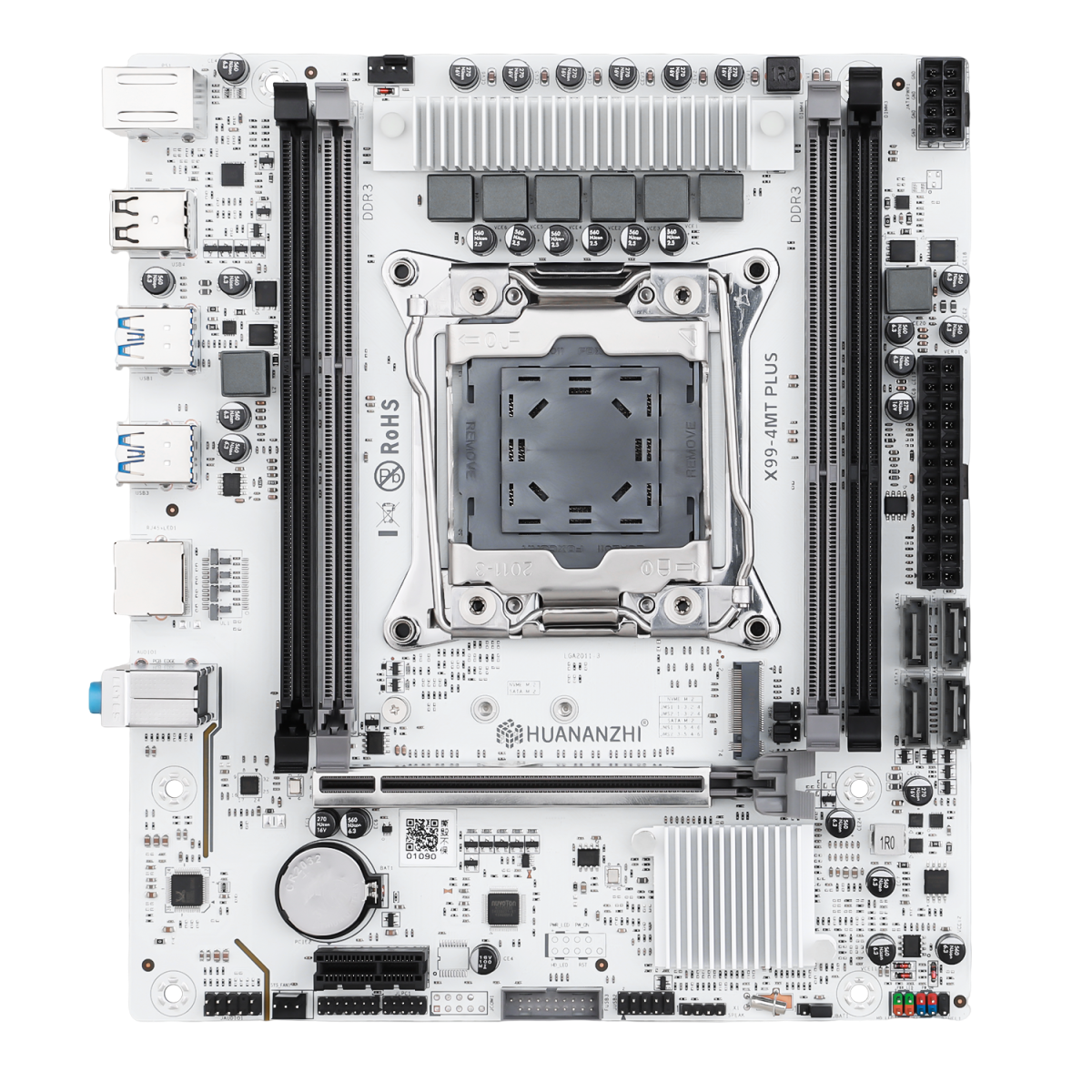

Chipset: Intel C612 series chipset
CPU Pins: Supports Intel LGA2011-3 platform processors (DDR3 compatible CPUs only)
Memory Slots: 4 DDR3 memory slots (black for primary slots, gray for secondary slots)
Memory Standard: Supports dual-channel DIMM DDR3 1866/1600/1333MHz memory (depending on CPU), maximum support 128GB
Storage Interfaces: 4 SATA3.0 6Gbps hard drive interfaces
Expansion Slots: 1 PCI Express 3.0 x16 slot, 1 PCI Express 2.0 x1 slot
Expansion Interfaces: 1 M.2 2280 (NVME PCIe x4 3.0 & NGFF SATA 3.0) Hard drive mode needs to be switched via jumper caps; NVMe protocol mode is defaulted.
Onboard audio card: Realtek ALC897 high-fidelity audio
Onboard network card: Realtek RTL8111H gigabit network card
Power interface: 24-pin motherboard power + 8-pin CPU power
Fan headers: 1 CPU_FAN header, 1 SYS_FAN header
Power phases: 6-phase power supply
PCB layers: 4 layers
Motherboard dimensions: 215*190MM M-ATX form factor
Rear panel interface: 1 PS/2 keyboard/mouse port, 4 USB 3.0 ports, 2 USB 2.0 ports, 1 RJ45 network port, 1 3-pin audio jack
Front panel interface: 1 USB 3.0 header, 1 USB 2.0 header, 1 TPM header, 1 buzzer header, 1 JBAT header, 1 JLPC header, 1 power/reset header
